Authentication and Security

Access to PC-lint Plus View data using the API is protected by two types of HTTP authentication schemes:

  • Basic, only for the GET /token API request.

  • Bearer, for all other API requests.

When using a REST client, authentication is done by providing the Authorisation header when making the request.

Example of bearer authentication using cURL
curl -X GET "http://localhost:8280/api/projects" -H "accept: application/json" -H "Authorization: Bearer <token>"

PC-lint Plus View data access via the API is restricted to users permissions in PC-lint Plus View. Users will not be able to access information that they do not have access to in the PC-lint Plus View’s web interface.

Retrieve Permanent Token

First type of tokens that can be generated in PC-lint Plus View are permanent tokens, which are generated from the PC-lint Plus View application’s web interface.

To do so, start by clicking your username in the menu bar and select the Account Settings option.

CFG api token account menu auto
Figure 1. Account Settings option

In the Tokens tab enter the name you want to assign to your new permanent token and then click Add.

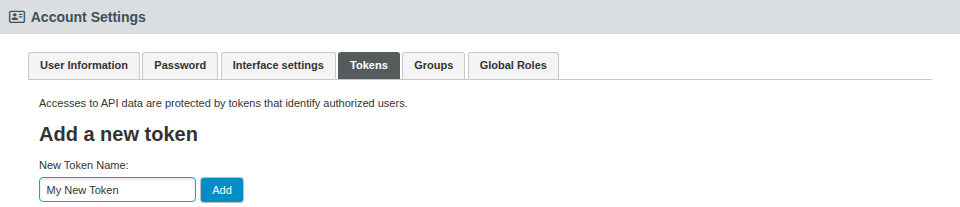

CFG api token account input auto
Figure 2. Create new token

Once created, the new token will appear in the table below, alongside the others.

Several tokens can be created and be active at the same time. This can be useful, for example if you want to associate a token with an external script that would use the API to retrieve data.

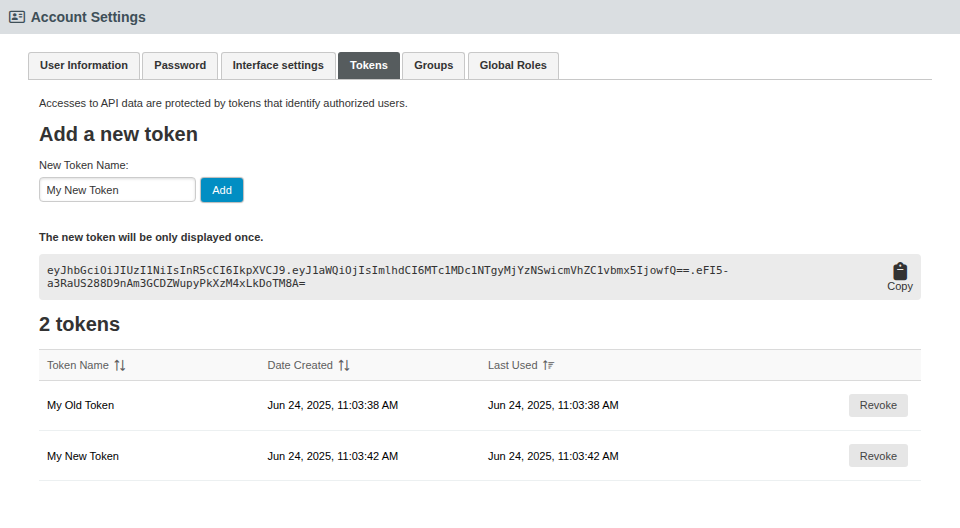

CFG api token account display auto
Figure 3. List of available tokens

Permanent tokens have no expiration date. The only way to invalidate them is to revoke them from the Account Settings page, by clicking the Revoke button.

Retrieve Temporary Token

Second type of tokens in PC-lint Plus View are temporary tokens. They are generated by executing the API request: GET /token.

By default, temporary tokens expire 24 hours after their creation. They also expire upon a restart of PC-lint Plus View server. The expiration time can be changed from the administration settings.

To know more about what is an API request and how to execute it, have a look at Using the API sections.

Don’t forget to have a look at API Viewer page. From there you will be able to:

  • Retrieve and test the list of available API requests, including GET /token.

  • Retrieve cURL examples.
